Large flow and low head electric heavy dehydration vehicle

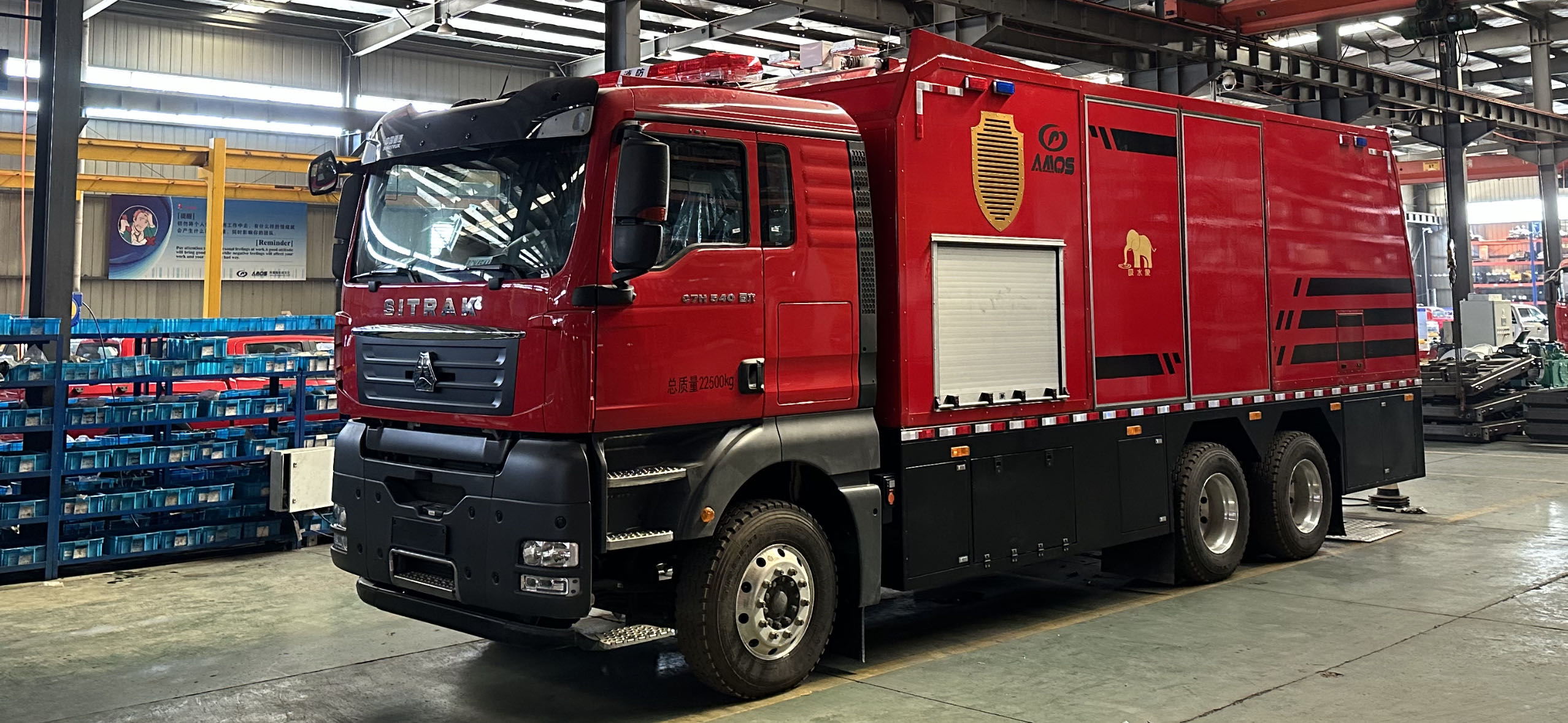

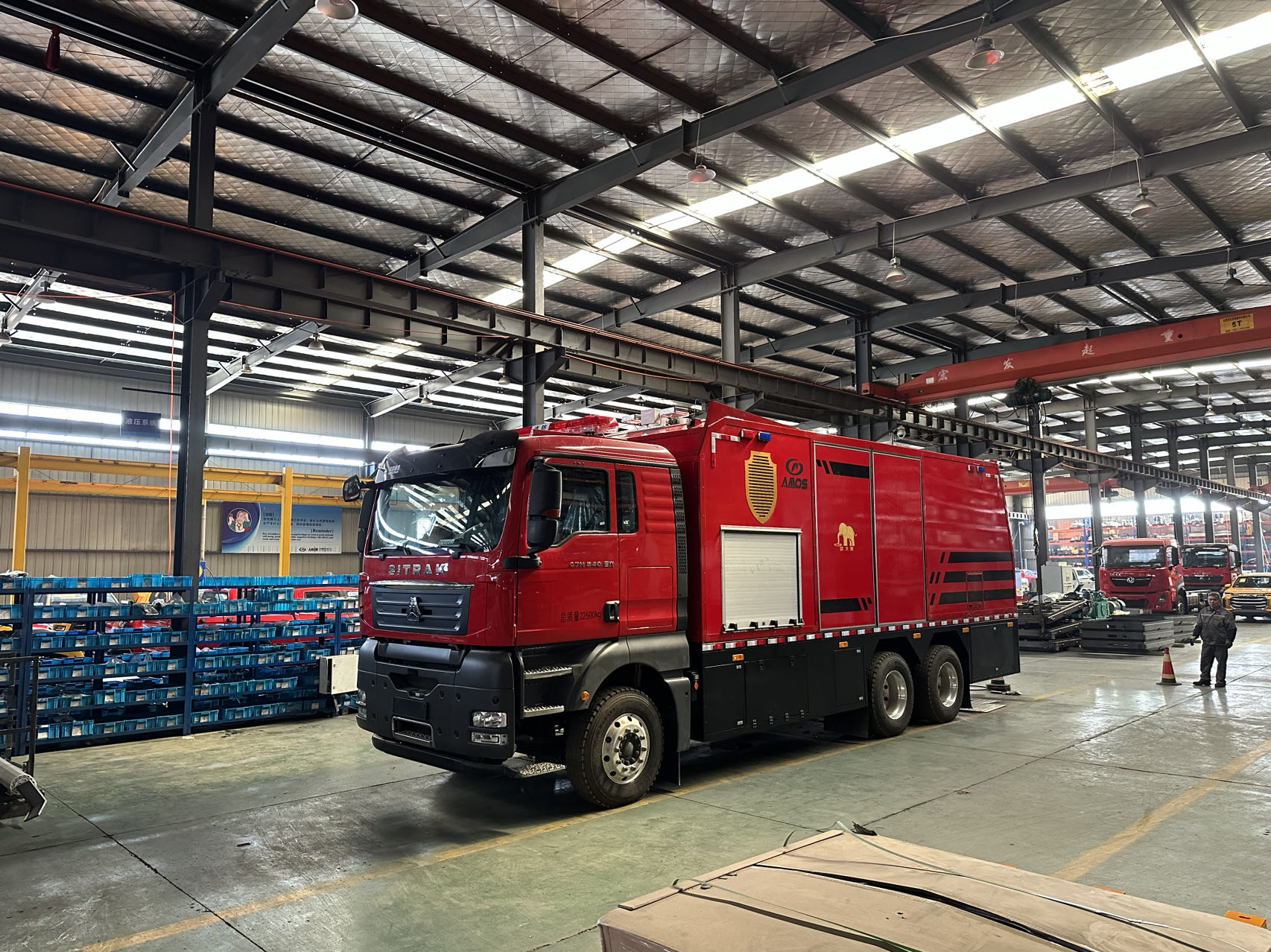

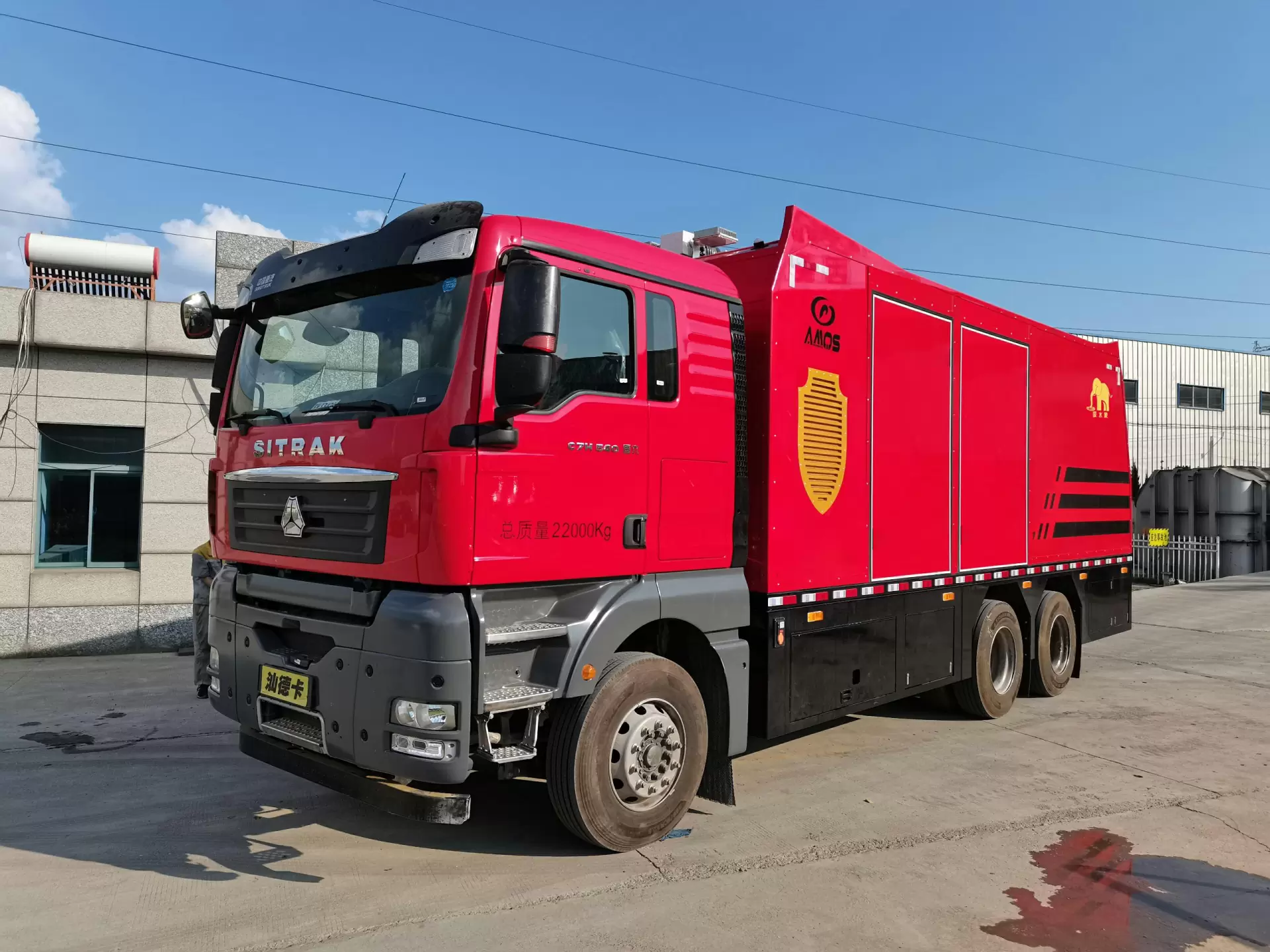

Longnose® EE series heavy-duty drainage vehicles are powered by truck engines, and the chassis is an equipment installation platform, which is refitted from heavy-duty trucks. It is an all-electric drainage vehicle specially designed for flood control, irrigation, and fire-fighting water supply.

Longnose® EE series heavy-duty drainage vehicles are powered by truck engines, and the chassis is an equipment installation platform, which is refitted from heavy-duty trucks. It is an all-electric drainage vehicle specially designed for flood control, irrigation, and fire-fighting water supply.

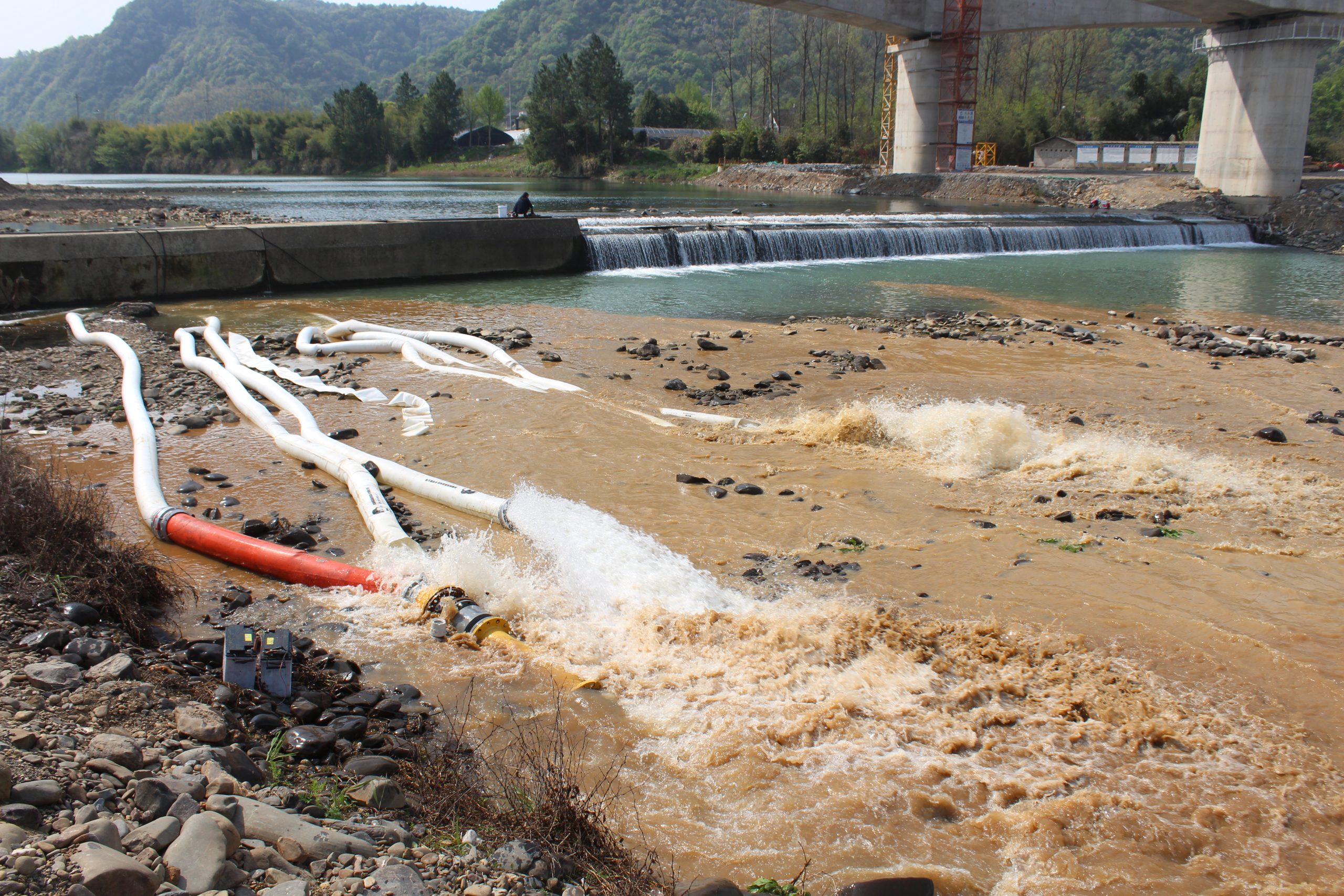

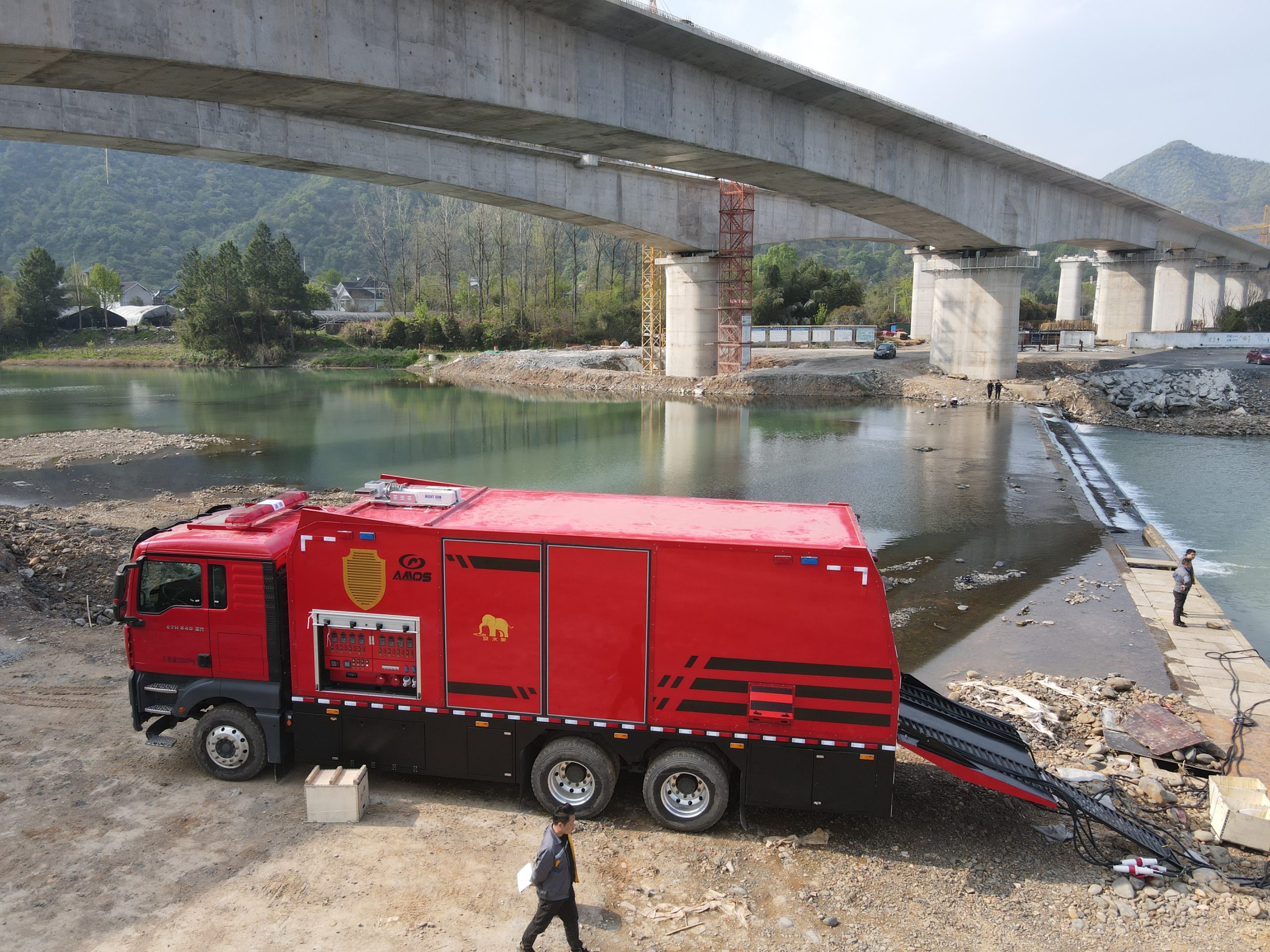

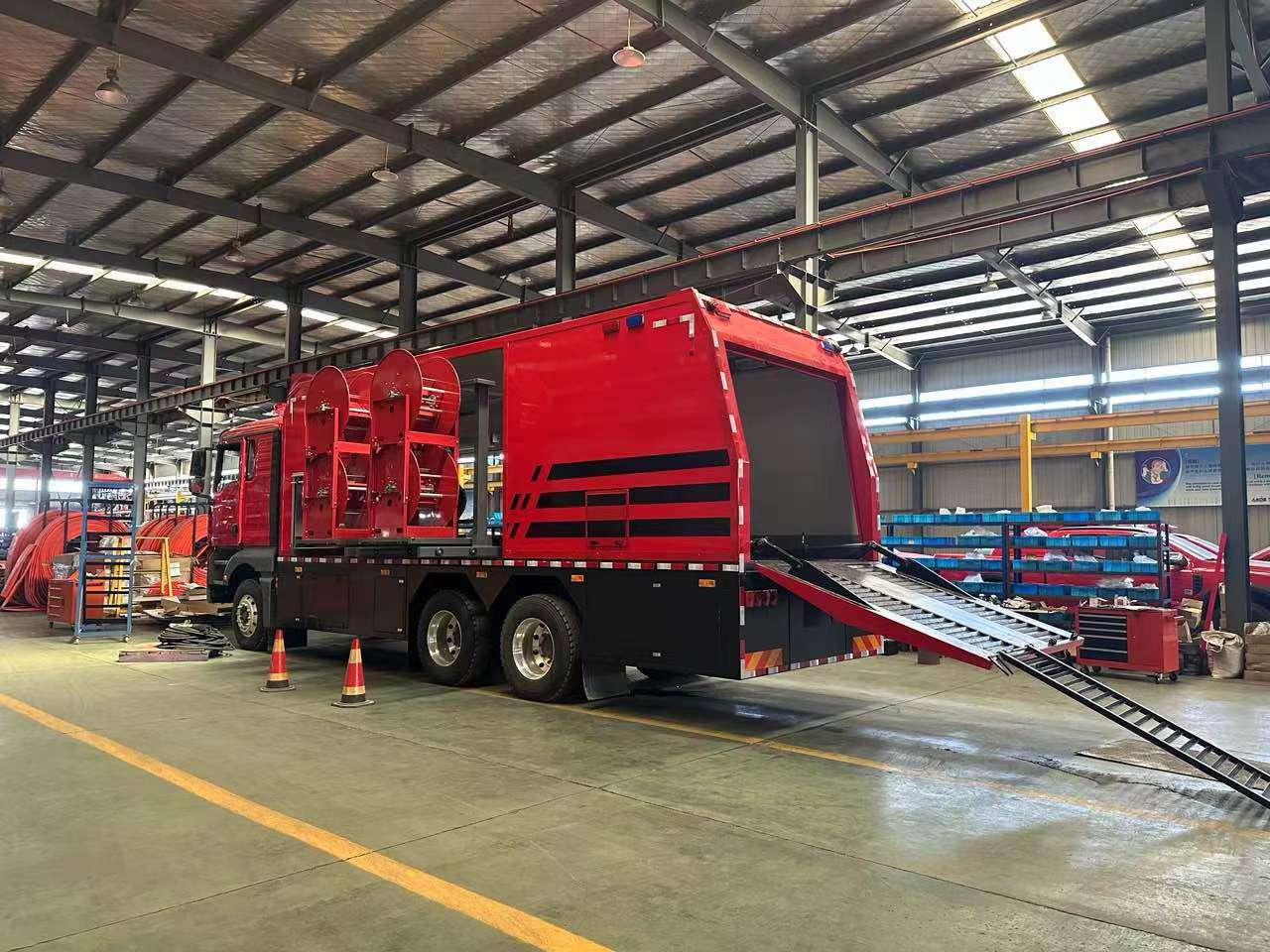

It consists of a heavy-duty truck chassis, a power generation system, a light tower, two water pipe winch modules, an oil pipe winch module, two sets of drainage pump modules and a multifunctional operation robot. The robot can walk up and down on the truck through the hydraulically driven rear door panel, automatically load, carry and unload the drainage pump module, and can also vertically lift the drainage pump from the bridge into the river for vertical drainage or water supply.

Longnose® EE series heavy-duty drainage vehicle has a total power generation capacity of 260kw, which can be used as a flood control vehicle in an emergency, and can also be used as a power source for other electrical equipment, or as an emergency power supply at ordinary times. Its control box adopts the mains compatible design, so that the drainage truck can use the mains for drainage.

Longnose® EE series heavy-duty drainage vehicles are a number of domestic and foreign patented products. It creatively combines the load, space, power, and mobility of heavy trucks with the versatility of robots, bringing a complete new concept and solution to the field of emergency rescue. It is an ideal choice for drainage, irrigation, fire protection, and power supply.

application

●Flood control and drainage ●Agricultural irrigation ●Power supply.



feature

●Full power PTO output technology;

●Master-slave design brings more flexibility;

●Modular design creates compact and space-saving carriages;

●Light carriage design, the whole machine is lighter;

●IP68 waterproof design, which enables the robot to have amphibious capability;

The separation ability of the machine and pump can solve the last 10 meters problem;

●Multi-dimensional robotic arm completely replaces manpower;

●The lifting tool can make the bridge drain vertically.

Technical Information

Model drainage system Power system
Single pump flow (m3/h) Head (m) amount) Total flow (m3/h) Pipe size (mm) Power (kW) Voltage (v)
E4000HD-200E 500 10 8 4000 200 ≥200 380
E4800HD-200E 600 8 8 4800 250 ≥200 380
E5600HD-240E 700 10 8 5600 250 ≥240 380
E6400HD-240E 800 8 8 6400 250 ≥240 380
E7200HD-275E 900 8 8 7200 250 ≥275 380
E8000HD-320E 1000 8 10 8000 250 ≥320 380
