Dredge system

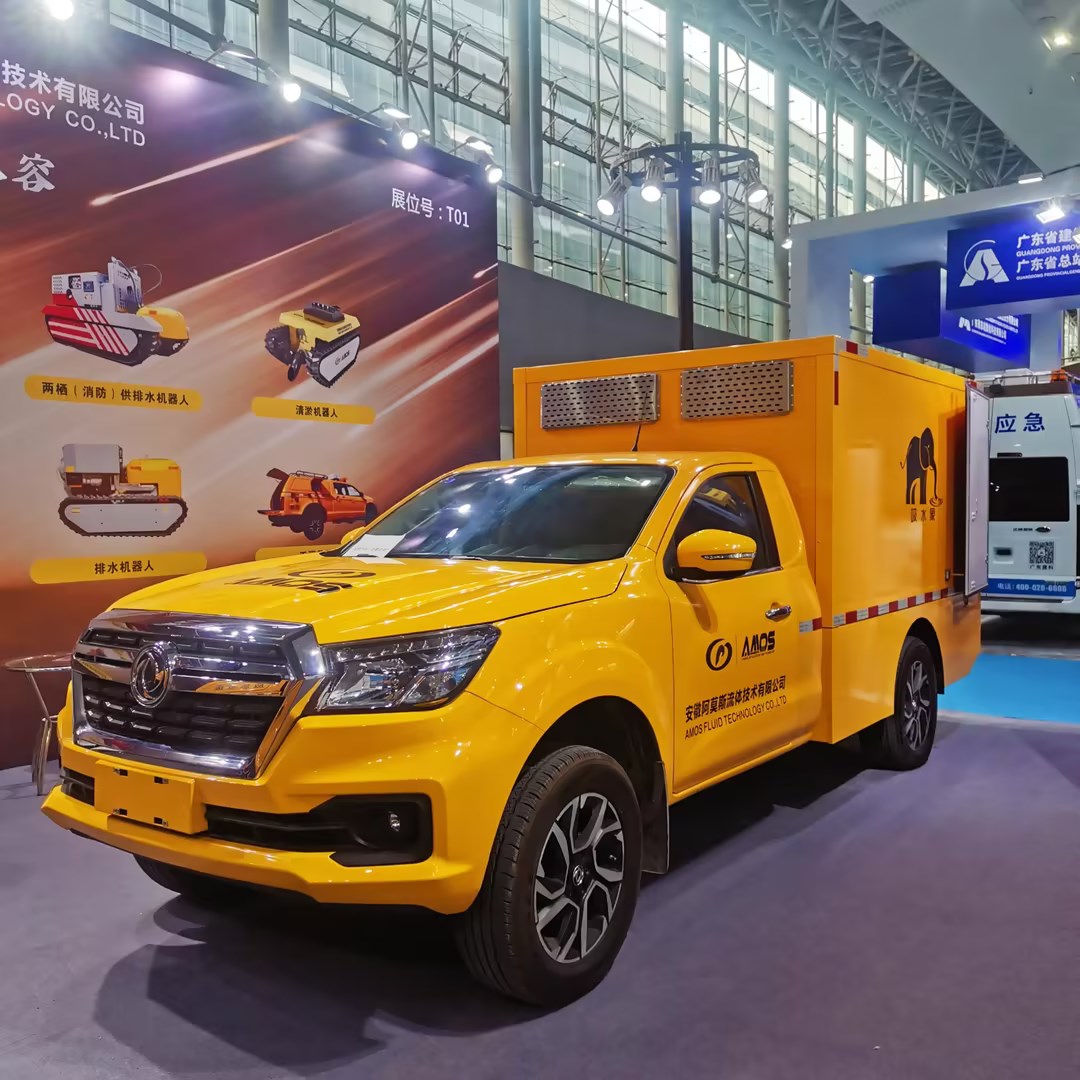

Longnose® E300PK-D20 dredging system is the world's first integrated dredging equipment converted from a pickup truck. It uses the truck engine as power to drive dredging robots and other equipment through full-power power take-offs and full-hydraulic power output systems.
Longnose® E300PK-D20 dredging system is the world's first integrated dredging equipment converted from a pickup truck. It uses the truck engine as power to drive dredging robots and other equipment through full-power power take-offs and full-hydraulic power output systems.

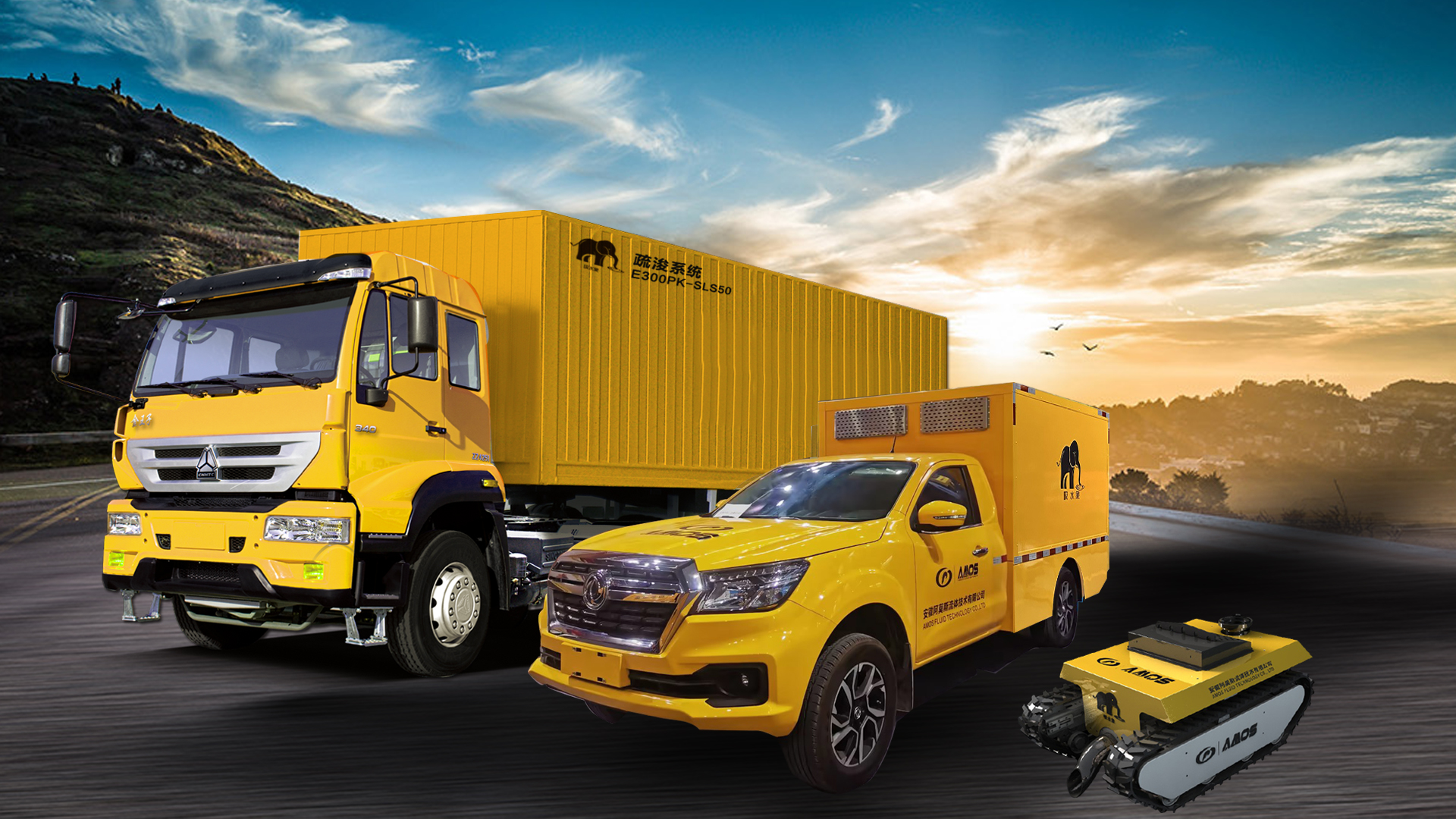

The whole system consists of pickup truck, hydraulic power take-off system, equipment cabin and dredging robot cabin. The equipment cabin and the dredging robot cabin are installed above the vehicle chassis, and the hydraulic power take-off system is installed below the chassis. The hydraulic PTO draws power from the truck engine to provide hydraulic power to the hose winch, dredging robot, high pressure water pump, sump pump and the cab, both of which are mobile and can be automatically loaded and unloaded from the truck chassis.

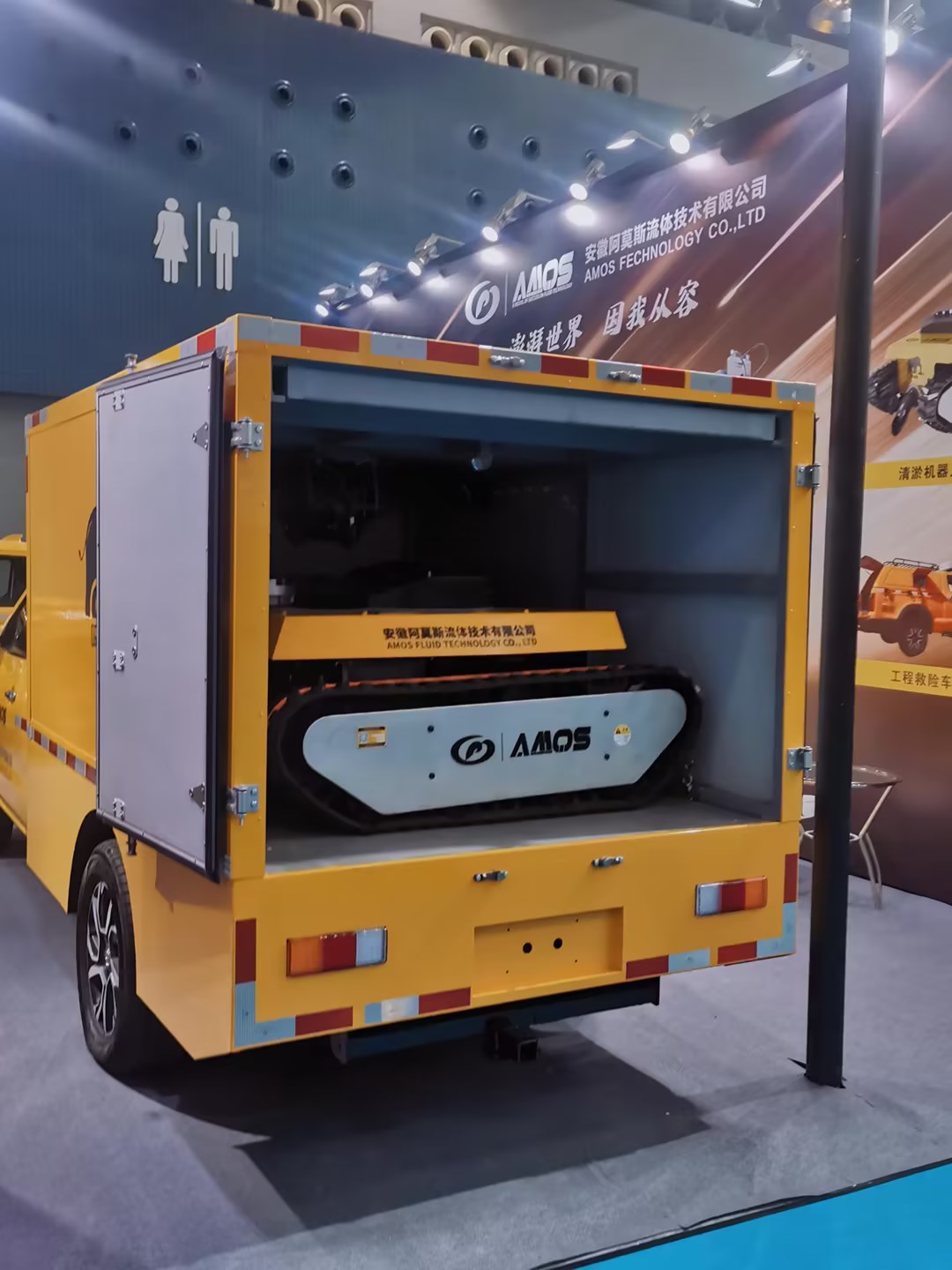

The dredging robot consists of a crawler chassis, a multi-dimensional motion manipulator, a dredging pump, a high-pressure nozzle unit and an IP68 waterproof control cabin. Install a dredging pump and a high-pressure nozzle device on the manipulator to increase the dredging depth and range of the dredging robot. Multiple sets of pressure sensors are installed on the dredging pump and manipulator, enabling the dredging robot to carry out the dredging work automatically.
Longnose® E300PK-D20 dredging system is a product with many domestic and foreign patents. Make full use of the power and mobility of the vehicle, and creatively combine dredging equipment, cab and pickup, bringing a new concept and one-stop solution to the municipal dredging industry.
application
- Municipal dredging ● sewer inspection ● flood control and drainage ● power generation.
feature
- High level of integration: all equipment is integrated on one truck;
- Modular cabin design: all cabins adopt standardized design;
- Power self-sufficiency: all working units are powered by truck engines;
- Independent operation: all cabins and dredging robot loading and unloading operations operate independently;
- High degree of intelligence: the dredging work is carried out automatically without remote control or camera;
- Strong adaptability: small size, strong ability to overcome obstacles;
- High safety: full hydraulic power operation, no electrical safety hazard;
- Strong dredging ability: the multi-dimensional motion manipulator makes the dredging robot work in a wider range and the dredging depth is deeper;
- Strong sewage discharge capacity: the dredging pump can handle solids with a diameter of more than 75mm.
Technical Information
whole system |
|||
Model |
size |
weight |
Output Power |
E300PK-H20 |
5600*1980*1959mm |
≤2860kg |
≥75kw |
Dredging robot |
|||
Model |
size |
weight |
rated power |
D300-H20 |
1300*840*650 |
600 kg |
35 kW |
waterproof level |
Maximum Merge Depth |
Moving speed |
obstacle height |
IP68 |
30 meters |
≥0.5m/s |
≥0.2m |
flow |
head |
Pump solid size |
hose length |
300 cubic meters / hour |
20 meters |
75mm |
120 meters |
High pressure spray pump |
|||
flow |
work pressure |
rated power |
pipe size |
40 l/min |
16Mpa |
5 kW |
25mm |
portable pump |
dynamo |
||
flow |
head |
rater power |
Voltage |
300 cubic meters / hour |
20 meters |
22kw |
220/380 volts |
pickup truck chassis |
|||
Model |
driving style |
engine power |
driving speed |
JAC Hunter T9 |
manual 4 drive |
110KW |
150km/h |
